H3CR-AP AC24-48/DC12-48
Zeitrelais - 11-Pin Rundsockel, Frontmaß: 48x48mm² - 8 Zeitfunktionen, 3 Spannungseingänge - Zeitbereich: 0,05s..300h, SW: analoge Vorgabe - 2 Zeitwechsler - IP40 (Frontseite) - LR, UL, CSA, entspricht EN61812-1
Specifiche
| Type | Analog |
| Installation type | Socket |
| Functions | Multi-functional |
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal | Plug-in |
| Operating mode | Flicker OFF Start (Signal Start), Flicker ON Start (Signal Start), Interval (Signal Start), OFF Delay (Signal), ON Delay (Signal Start), Signal ON/OFF Delay |
| Output type | Relay |
| Contact description | DPDT |
| Time range | 0.05 s - 300 h |
| Supply voltage AC | 24-48 V |
| Supply voltage DC | 12-48 V |
| Number of pin contact | 11 |
| Inputs | AC voltage, DC voltage, Signal (NPN/PNP) |

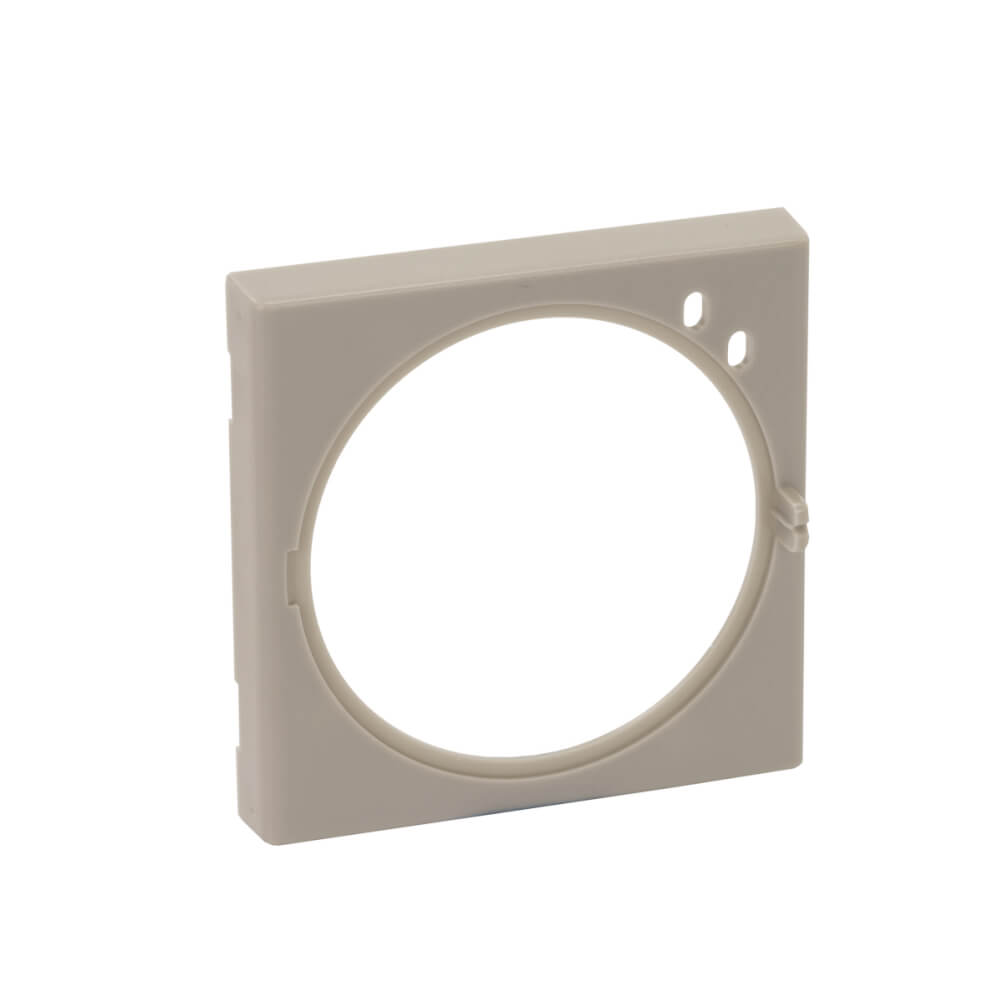

Accessori
Prodotti
-
P2CF è la serie di zoccoli per timer H3CA/R e H5CN/X/Z e per contatori H7CC/N/X/Z
